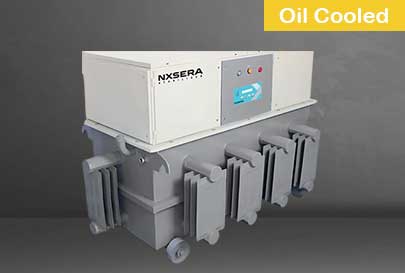

Servo Control Voltage Stabilizer

Servo stabilizers have a wide adjustment range and strong load adaptability, making them suitable for installation in industrial environments where there is frequent voltage fluctuation. Suitable areas include factory workshops, such as CNC machines and large production lines.

Technical Specification

Specification	Details
Voltage	Three Phase
Cooling	Aircooled and Oilcooled
Input Voltage Range	340V-480V
Input Frequency	47-53 Hz
Output Voltage	415V
Output Voltage Regulation	+1 A
Servo Motor Type	Opto Coupler based triac drive
Control Design	Microcontroller (Digital Signal Processor) based system
Voltage Sensing & Correction	True RMS Sensing & Correction
Correction Speed	60V/Sec
Efficiency	98 A
Under/Over Voltage Cut Off	Upper Limit +5 A, Lower Limit -10 A of O/P nominal voltage
Short Circuit	MCB or MCCB
Overload	Operative above 110 A of rated output current
Waveform Distortion	Not generate additional waveform distortion (static)
Single Phase Protection	Built-in
Phase Reversal Protection	Built-in
Reset	Auto Start / Manual restart (User Settable)
Front Panel Indication	I/P & O/P Voltage L-L, L-N, Hz, Current R-Y-B (all phases)
Event Recorder	Provided for fault detection
Ambient Temperature	Up to 50 Deg C
Design Standard	As per IS 9815

Common Causes of Voltage Fluctuations

Power grid load fluctuations: Sudden changes in the electrical load within the grid can cause voltage instability.
Distance from power supply center: Remote areas located far from power supply centers tend to experience more severe voltage fluctuations.
Frequent startup of equipment: High-power industrial equipment's frequently starting up can lead to localized voltage dips and surges.

Over-voltage protection

the input voltage is higher than a specific value,the regulator automatically cuts off the power supply toprotect the equipment from over-voltage damage.

Undervoltage protection

the input voltage is lower than a specific value, thevoltage regulator automatically cuts off the power supply toprevent equipment damage due to insufficient voltage.

Short circuit protection

When a short-circuit condition is detected, the voltageregulator quickly cuts off the power to avoid seriousdamage to the equipment and the regulator itself.

Overload protection

When the load current exceeds the rated value, thevoltage stabilizer automatically cuts off the power toprevent the overload from causing harm to theequipment and power grid.

Missing phase protection

When the three-phase power supply input grid any phasevoltage is missing, the regulator does not start, to avoidequipment damage due to phase loss.

Over-temperature protection

When the internal temperature of the regulator exceedsthe safety value, the regulator automatically cut off thepower to prevent the failure or fire caused byoverheating.
